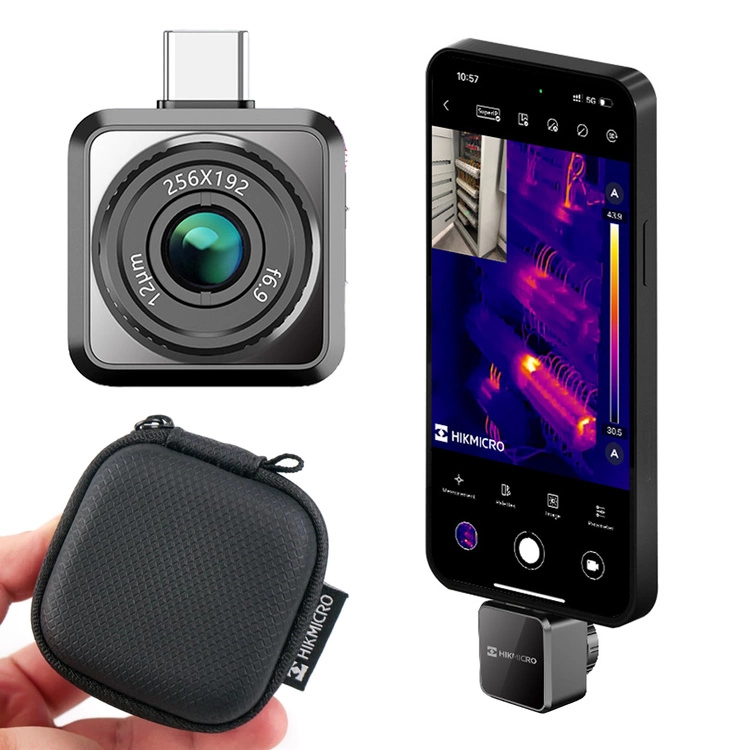

HIKMICRO Mini2 Plus V2 - product image
Thermal camera dongle

Mini2 Plus V2 is HIKMICRO’s cross-platform USB thermal dongle. It plugs into Android USB-C phones or iPhones via the supplied adapter and streams a 256×192, <40 mK NETD feed at 25 Hz for HVAC, electrical and building diagnostics.

Updated Nov. 22, 2025, 8:56 p.m.
  • Thermal imaging core specs
    Resolution: 256×192
    Frame rate: 25.00 Hz
    Temperature range: -20.00°C to 350.00°C
    Field of view: 50.00° × 37.20°
    Sensitivity (NETD): 40 mK
    Focus: Fixed focus
    • Auto/Manual level & span, center/hot/cold spot + 3 user spots & rectangles.
    • 15 color palettes inside the HIKMICRO Viewer app.
  • Compatibility & connectors
    Connector: USB-C with Lightning adapter (bundle)
    Compatible OS: Android, iOS
    Power: Phone-powered (~360&nbsp;mW draw)
  • Device & battery
    Weight: 20 g
    Dimensions: H 42.0 mm / W 22.5 mm / T 11.2 mm
    Battery life: Unknown h
