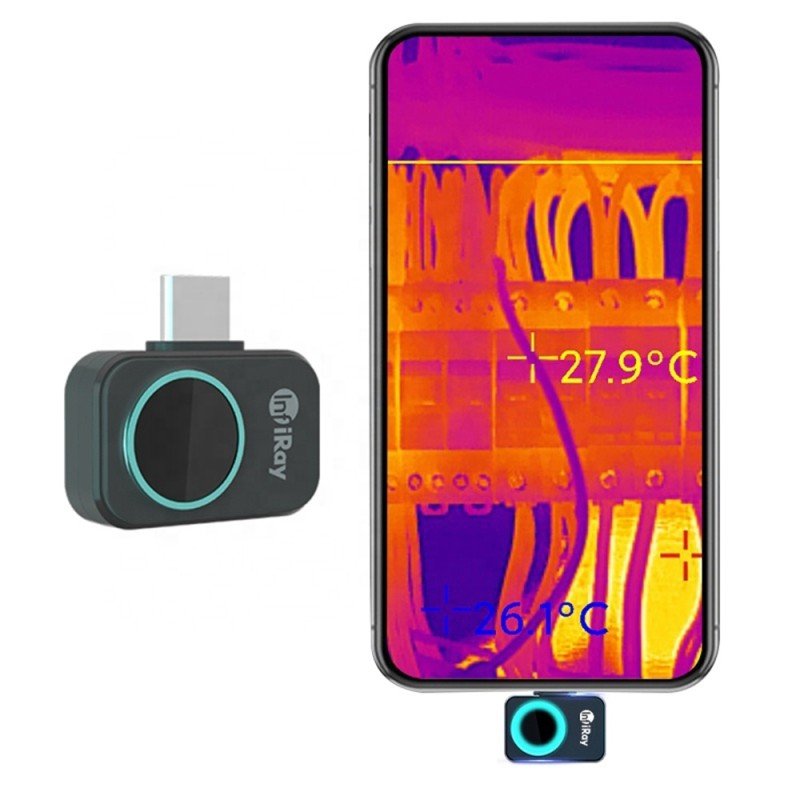

InfiRay P2 Pro Thermal Camera - product image
Thermal camera dongle

InfiRay’s P2 Pro is a 9 g USB-C thermal camera module that clips onto Android phones and tablets. It pairs a 256×192, 12 µm VOx sensor with a magnetic macro lens for close-up PCB inspection and streams live thermography through the P2 Pro companion app.

Updated Nov. 22, 2025, 8:39 p.m.
  • Thermal imaging core specs
    Resolution: 256×192
    Frame rate: 25.00 Hz
    Temperature range: -20.00°C to 550.00°C
    Field of view: 56.00° × 42.20°
    Sensitivity (NETD): 50 mK
    Focus: Fixed focus
    • Measurement accuracy ±2 °C or ±2%.
    • Supports spot/line/area measurements, palettes (white-hot, black-hot, pseudo colors), instant sharing and over-the-air app updates.
  • Compatibility & connectors
    Connector: USB-C
    Compatible OS: Android 9.0+
    Power: USB powered (~350 mW draw)
  • Device & battery
    Weight: 9 g
    Dimensions: H 27.0 mm / W 18.0 mm / T 9.8 mm
    Battery life: Unknown h
